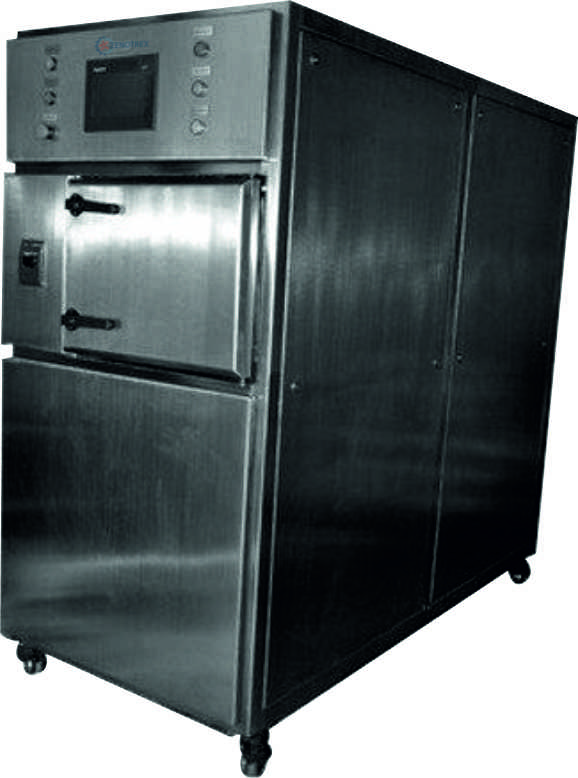

ETO Sterilizer

Make: Zenotrex Medico
Model: ZPL-E19S

ETO STERILIZER

CE Marked Ethylene Oxide Gas Sterilizer uses ethylene oxide as a biocide to destroy bacteria, viruses, fungus and other unwanted organism. Ethylene oxide is used in sterilization of items that are heat and moisture sensitive such as anesthetic tubing and other plastic disposable materials etc.





Chamber

Double walled SS 3l6 for
corrosion/ Aluminium Alloy Anodize Finish and gas resistant. The
inner surface is smoothly finished to minimize gas deposit.

 Mode of Heating

Chamber will be heated with Strip air
heater / Hot water circulated through the
lump id coil of SS 304 around the chamber to maintain the chamber temp. at
33-55°C. Cold sterilisation of heat sensitive material.

 lnsullation of Shell

Sterilization Chamber will be insulated
against heat emission and its jacket shall have water circulation based
cooling arrangement.

 Door

Single, SS 316, hinged type automatic
operation with quick release locking arrangement with suitable safety interlocking
so that the process cannot start unless the door is properly closed and
cannot be opened during the process.

 Paneling

SS 304, Box type design, MMI-PLC will be
located within the panel.

 Vacuum Pump

Diaphragm vacuum pump provided to
achieve high level of air removal for high sterility and efficient residual
gas removal during aeration process from the chamber and gas strap to
separate and evacuate the gas. lnbuilt Gas catalytic converter for the exhausted
ETO gas.

 Gas Purging

Provided with cartridge punchering
system as well as provision for EO + C02 cylinder.

 Sterilization
Process

Fully automatic PLC / Touch Screen
models. Two nos. sterilization cycles with
inbuilt leak test and aeration will be provided, which will be completed
automatically.

 Stand

SS 304

 Documentation

Thermal Printer / Dot – matrix printer
which will print date, batch/load number, pressure and temperature program
type selected and program parameters which includes one point temperature
print out.

 Programs

Following programs with variable
parameters are provided to take care of user’s
requirement. Fully automatic operation.

»

Negative Pressure
Cycle (100%ETO Cartridge).

 Cycle
Description

»

Vacuuming of
chamber to set value

»

Leak hold period.

»

Cartridge
punchering / gas purging depending on the cycle selected.

»

Sterilization hold
period for set time.

»

Aeration cycle / programme to extract residual gas out of the
sterilized objects after
each sterilization cycle.

»

Automatic chamber
evacuation cycle with subsequent venting before releasing the door lock for
opening, thereby prohibiting exposure of the operating exposure of
the operating personnel by the gas dissolving from the chamber walls during
shutdown period.

»

Gas disposal
arrangement /catalytic converter.





Sr.
No.

Inner
Dimension (in MM)

Capacity(in
ltr)

In
CFT

1


      300X300X600

54

1.9

2

300x300x900

81

2.8

3

300x300x1200

108

3.8

4

320x320x1350

138

4.8

5

350x350x1200

150

5.2

6.

460x510x970

227

8.1

  • The above mentioned sizes are our standard size.
  • We will also manufacture the machine as per customer’s requirement. Size and material of the machine (Aluminium alloy) can be change as per the demand.
