MAKE: ZENOTREX MEDICO
MODEL: ZPL-AH01S

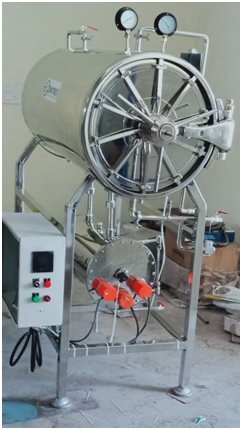

HORIZONTAL STEAM STERILIZER
FEATURES:
Capacity : 150-350ltrs
Triple walled construction
High-Pressure High Vacuum Horizontal Cylindrical Sterilizer single door,
automatic, suitable for operation on electricity
Low water cut-off device, Chamber Temperature on display.
Mechanical ejector
Automatic vacuum breaker
Self-sterilizing vacuum drier.
Spring-loaded safety valve
Automatic self-locking device
Automatic Pressure control switch
Jacket made of boiler-quality steel
Equipped with Triple Safety Like pressure control switches and safety valves etc.
SPECIFICATIONS:
Working Pressure | 1.2Kg/cm2 |
Working Temperature | 121°C |
Chamber & door plate | Corrosion Resistant 316 Grade Stainless Steel |
Back plate & steam generator | stainless-steel argon-arc welded with tubular mild steel stand |
Door | Single/Double Doors with automatic pressure Hinged locking system (304 Grade Stainless Steel) |
Insulation | Glass wool insulation |
Sterilization Period | 25 to 30 Minutes |
Multiport operating valve | 5 positions – off/slow, exhaust, vacuum dry, sterilization, and fast exhaust also fitted with one pressure gauge and one compound gauge. |
Power Supply | with 3 phase 400/440 V 50 Hz AC supply |
Steam Generator | Stainless steel 304 fitted with 3 nos. 6 KW heaters each. The heaters mounted on a thick stainless-steel plate. |
Other Features:
· Air break contactor with toggle switch indicting lamps
· Gauge glass assembly
· Dial thermometer
· Automatic shut off valves
· Copper Sensor for save the Electric and Water consumption
· Plug screen
· Swing check valve
· Steam trap
· Carriage & Trolley for loading & Unloading(SS 304)
