Make: Zenotrex Medico
Model: ZPL-A22R

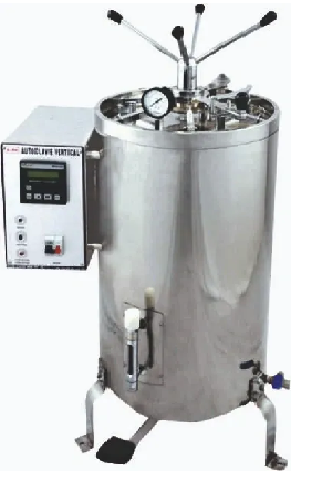

VERTICAL AUTOCLAVE SEMI AUOCLAVE

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These systems are designed for meeting effective sterilization requirements in bacteriological and research laboratories, hospitals and clinics and food and beverage units. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.

Zenotrex vertical type autoclaves deliver flexible solutions of steam sterilization in hospitals, clinics and other areas of application, where reliable steam sterilization is a mandatory process. Vertically designed chamber provides guaranty of safe and efficient sterilization even in confined spaces. In order to suit specific application, these units are fabricated as fully GMP stainless steel double and triple walled construction; in addition, we also manufacture vertical autoclaves with other configurations, which include stainless steel inner and exterior made of Mild Steel (MS).

Features:

Tank volume 20 to 175 liters

Equipped with joint less silicon rubber gasket

Provided with immersion type heater

Double, triple wall & steam storage GMP construction

Comply with NABL standards

Radial or wing nut type door locking

Easy operation and low maintenance

Water level indicator

IQ/ OQ / PQ Documentation

Digital temperature indicator

Specifications:

Internal Tank Capacity

22 Liter

40 Liter

50 Liter

78 Liter

95 Liter

175 Liter

Chamber dimension

250x450mm

300x500mm

350x550mm

400x600mm

450x600mm

550x750mm

Load

2.00 KW

3.00 KW

3.00 KW

4.00 KW

4.00 KW

6.00 KW

Working Pressure

1.2 kgf/cm sq.g (15 psi – 17 psi) (Can be Upgraded up to 30 PSI)

Sterilizing Temperature

121°C (134°C – Optional)

Heat Average

<=±1°C

Sterilization Time

25 to 30 Minutes

Digital Timer

0 to 99 min

Construction

Double / Triple wall & Steam Storage with GMP construction

Outer Chamber

Mild Steel (304 stainless Steel – Optional)

Inner Chamber

304 SS (316 / 316L grades Stainless Steel – Optional)

Insulation

Glass Wool

Waste Container

Stainless Steel

Door / Lid

Foot lifted with safety and interlock device

Door Locking type

Radial Type /Wing Nut

Water Filling & Removal

Manual

Safety Features

Radial locking, safety valve, low water detector and pressure interlock

accessories

– PID controller
– Low / High water cut-off device
– Digital alarm
– IQ / OQ / PQ Documentation (with extra charges)

Power Supply

220 Volts / 440 Volts

Option:

PLC
SYSTEM

Digital
Timer

Thermal
Printer

Vacuum
Pump with steam storage
